Description:

Princeton ModelNet Project

Subset:

ModelNet 40

Graph Explanation of settings:

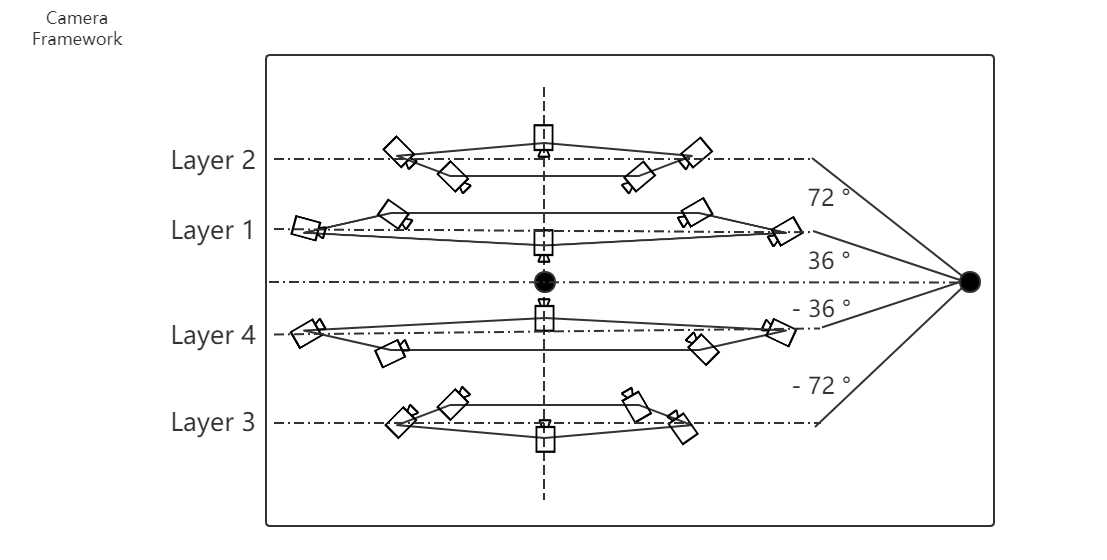

4 layers framework, the included angle with ground is set to +36, +72, -36, -72. All cameras towards to the origin(Object).

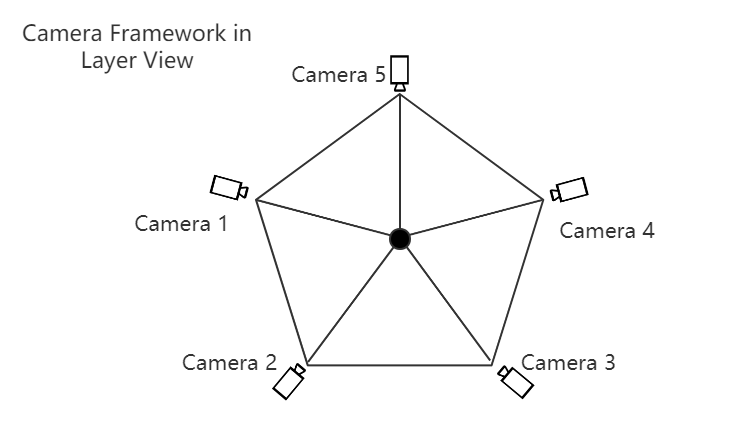

In each layer, the deployment looks like a pentagon, which means the degree is (360/5)=72.

There also exists a little rotation of different layer to make cameras in malposition. That means the adjacent 2 layers, the ‘pentagon’ will ‘self-rotate’ for 36 degree.
